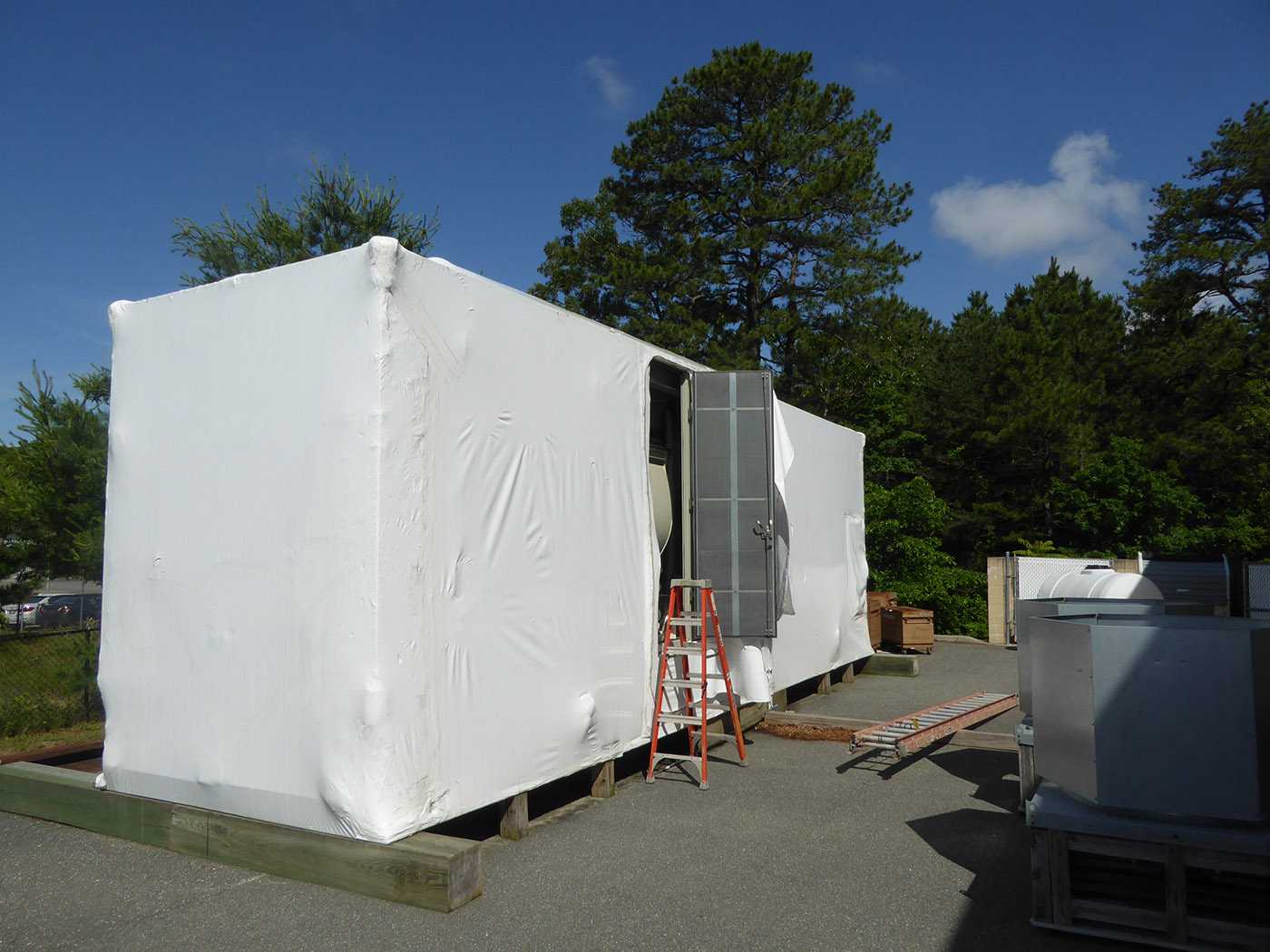

7.4 MW Taurus 70 Gas Turbine Generator

Sorry - this product is no longer available

Manufacturer: Solar Turbines

SKU: 467060

Be the first to review this product

7.4 MW Solar Taurus 70 Combustion Turbine Generator Package; Engine: T10801SA; SoloNox - Low NOx engine designed for Natural Gas fuel combustion. Hours: 12,205; Starts @ 125; Includes 7600 kw Kato Synchronous Generator; 12.47 kV; 9500 KVA; 3 Phase; 60 Hertz. Featuring on Package Controls, and a Donaldson Inlet Air Filter with Air Inlet Chiller. *** Also available are two (2) absorption chillers rated for 2000 Tons of cooling, an ammonia SCR and Catalyst system, as well as a Rentech hot water waste heat recovery boiler ***

Qty:

Overview
Specifications
Reviews
Contact Us

Equipment Design Criteria

Site Elevation:

Temp. Range:

Average Temp:

Air Inlet Temp:

Humidity:

Fuel Rate (LHV):

Heat Rate (UN):

Fuel Rate (HI-IV):

Heat Rate (HHV):

Exhaust Flow:

Power Factor:

11 Ft. Above Sea Level

10 F - 95 F

55.7 F

55 F (chilled)

60 %

79.11 MMBtu/hr.

10,149 Btu/kWh.

87.02 MMBtu/hr.

11,163 Btu/kWh

212,557 lbs./hr.

0.80

Fuel Gas Properties

Heat Value:

Min. Pressure:

Max. Pressure:

Flow Rate:

Temperature:

939.2 Btu/scf.

70 PSIG

125 PSIG

1,401 SCFM

120 F

Performance (ISO)

Turbine Output:

Heat Rate (LI-IV):

Heat Rate (HHV):

7.184 MW

10,842 Btu/kWh

11,926 Btu/kWh

Products specifications

Equipment Class	Gas Turbine Generators
Frequency	60 Hertz
Output	5.0 - 10.0 MW ISO
Fuel Type	Natural Gas
Voltage	4160 Volt
